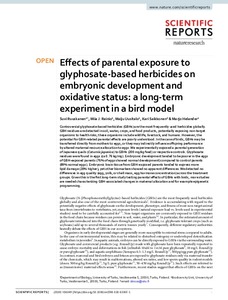

Effects of parental exposure to glyphosate-based herbicides on embryonic development and oxidative status: a long-term experiment in a bird model
Kai Saikkonen; Marjo Helander; Maiju Uusitalo; Suvi Ruuskanen; Miia J. Rainio
https://urn.fi/URN:NBN:fi-fe2021042820819
Tiivistelmä
Introduction
Glyphosate
(N-[Phosphonomethyl]glycine)-based herbicides (GBHs) are the most
frequently used herbicides globally and also one of the most
controversial agrochemicals1.
Evidence is accumulating with regard to the potentially negative
effects of glyphosate on the development, phenotype, and fitness of most
non-target animal taxa from invertebrates to vertebrates, yet, exposure
levels (natural exposure load vs. levels used in experimental studies)
need to be carefully accounted for2,3,4.
Non-target organisms are commonly exposed to GBH residues in the food
chain because residues can persist in soil, water, and plants5,6.
In particular, the estimated amount of glyphosate introduced into the
food chain through genetically modified, i.e. glyphosate tolerant crops
(such as soybeans) add up to several thousands of metric tonnes yearly7. Consequently, different regulatory authorities heatedly debate the effects of GBH in our ecosystems.
Organisms
in early developmental stages are generally more susceptible to
external stress compared to adults. In the case of environmental toxins,
this may be related to disturbed ontogeny or undeveloped detoxification
metabolism in juveniles8.
In aquatic animals, embryos can be directly exposed to GBHs via the
surrounding water. Glyphosate and commercial products (e.g. RoundUp)
made with glyphosate have been repeatedly reported to cause embryo
mortality and deformations in fish (zebrafish 10uM to 1 mM pure
glyphosate9, 10 mg/L RoundUp or pure glyphosate10), and aquatic amphibians (Xenopus 0.3–1.3 mg/L RoundUp11, 500 pg/egg pure glyphosate12).
In contrast, mammal and bird embryos and fetuses are exposed to
glyphosate residues only via maternal transfer of the chemicals, which
may result in malformations, altered sex ratios, and low sperm quality
in rodent models (doses: 500 mg/kg RoundUp13, 5 g/L pure glyphosate14, 50–450 mg/kg RoundUp15). Such effects are referred to as (transmissive) maternal effects sensu16.
Furthermore, recent studies suggest that effects of GBHs on the next
generation can be mediated via epigenetic paternal effects, for example
via alterations of paternal sperm(17, parental generation, a dose of 25 mg/kg BW pure glyphosate in rats18).
However,
the true maternal and paternal effects of GBH are poorly understood
because the majority of the studies are involving direct embryo
manipulations with high doses of GBHs. The authors of future studies
should take into account that GBHs may influence the quality of the
resources allocated to eggs/embryos and thus offspring development,
phenotype, and fitness indirectly. Prenatal environmental
conditions, and for example hormonal signals from the mother are known
to have crucial importance for offspring development and even lasting
effects into adulthood19,20,21.
In
this study we used birds as a model to study the parental and
developmental effects of GBHs. Birds are highly underrepresented in
studies testing the adverse effects of GBH residues on non-target taxa2, although they have recently been suggested as a key group for biomonitoring with regard to the effects of GBHs22.
The importance of poultry in food production also calls for more
attention on residues and the effects of GBHs in birds. In the two
available studies of poultry and GBH-related maternal effects, a direct
injection of a relatively high concentration of RoundUp (10 mg/kg
glyphosate) in eggs was found to decrease hatchability, induce oxidative
stress and cause damage to lipids in the exposed chicks, as compared to
the control group23,24, potentially via the disruption of retinoid acid signaling12.
To
understand the potential for GBH-induced parental effects, we studied
parental exposure of GBHs on embryo development and key physiological
biomarkers—embryonic brain oxidative status in a bird model. To our
knowledge, this is the first long-term study on parental effects of GBHs
in bird taxa. Oxidative stress refers to the imbalance between reactive
oxygen species (ROS) and antioxidants: If antioxidants are not able to
neutralize ROS, oxidative damage to cell components (proteins, lipids,
and DNA) will occur, which then has negative consequences on cell
functions25.
GBHs have been previously found to induce oxidative stress and damage
in a variety of organisms and tissues, including embryos reviewed in2.
We quantified glyphosate residues in eggs, but also maternal allocation
to eggs (egg, yolk, and shell mass and yolk thyroid hormone
concentration) to account for potential indirect GBH effects. Prenatal
thyroid hormones (THs) (thyroxine, T4 and triiodothyronine, T3) play a
key role in coordinating embryo development20,26, especially brain development27. Embryo THs have been reported to vary with maternal GBH exposure in rats (dose: RoundUp 5 and 50 mg/kg/day28),
but generally the effects of GBHs on THs are poorly understood.
Japanese quails were selected as the model species because the results
can be applied to both wild birds feeding on GBH-contaminated food in
the field and to poultry farming. We experimentally exposed parental
bird generation to GBHs (ca 200 mg/kg feed) or respective controls from
10 days of age to 12 months. The egg samples were collected at 4 and 12
months to examine the potential cumulative effects of long-term
exposure. We measured the potential effects on (1) on egg quality (egg,
yolk, and shell mass as well as egg thyroid hormones); (2) on embryo
development; and (3) embryo oxidative stress and damage.
Results
We detected 0.76 mg/kg (S.D. ± 0.16) of glyphosate residue in eggs see also29, which is above the levels reported in the previous literature30. Egg mass from GBH and control parents did not differ after 4 or 12 months of exposure (treatment F1, 17,1 = 0.12, p = 0.73, treatment*exposure duration F1, 270 = 0.02, p = 0.89, Table 1) but was generally larger at 12 months of age (duration: F1, 271 = 8.8,
p = 0.003). No differences between GBH exposed and control females in
yolk mass, shell mass, or egg T3 and T4 concentrations were detected
(Table 1, Suppl Fig. 1).
1 Quality of the eggs (egg, yolk, and shell mass; thyroid hormone
concentrations: T3 = triiodothyronine, T4 = thyroxine, average ± SD)
from GBH (glyphosate based herbicide)-exposed and control females. The
egg mass was averaged over all eggs (4 and 12 months of exposure). The
other parameters were measured after 4 months of exposure. See text for
power analysis.
Embryo
development was normal in 89% of control eggs, while 76% of GBH eggs
had normally developed embryos when pooling data from 3-day and 10-day
embryos. The lower percentage of normal development in GBH eggs tended
to be statistically significant (treatment F1, 22 = 3.08, p = 0.09) and the trend was similar at both 4 and 12 months of parental exposure (treatment*duration F1, 312 = 0.6, p = 0.43, Fig. 1).
The eggs with no or little development were distributed across pairs
and for none of the pairs were all eggs classified as undeveloped. Brain
mass did not differ between embryos from GBH-exposed and control
parents (mean ± SD in mg; GBH: 67.1 ± 12.5, control 68.1 ± 15.5; F1,31 = 0.04,
p = 0.84). Brain oxidative status at 12 months of parental exposure was
measured from 19 control and 16 GBH embryos. We measured ca 20% higher
lipid damage in the GBH embryos than controls. This difference tended to
be statistically significant (F1, 16.8 = 3.2, p = 0.088, Table 2, Suppl Fig. 2), yet there were no differences in the activity of antioxidant enzymes (GST, GP or CAT) between the two groups (Table 2, Suppl Fig. 2).
Embryonic
status in relation to glyphosate-based herbicide exposure and duration
of the exposure. GBH = glyphosate exposed, CO = controls. The bars are
drawn separately for GBH and control eggs and after 4 and 12 months of
exposure: we assessed 3-day-old embryos at 4 months and at 10-day-old
embryos 12 months. Sample sizes are indicated in parentheses.
2 Average (±SD) of glutathione-S-transferase (GST), glutathione
peroxidase (GP), catalase (CAT) activity, and damage to lipids (MDA) in
10-day-old Japanese quail embryos exposed to maternally-derived
glyphosate-based herbicide (GBH) or unexposed embryos (control).
Associate statistics from linear mixed models (LMMs) are reported below.
See text for power analysis.
Discussion
Our
results indicate that parental exposure to GBHs may lead to weak
negative effects on embryo development and physiology. We detected no
evidence for changes in egg quality (egg, yolk, shell mass, or egg
hormone concentration), suggesting no indirect effects via the altered
allocation of resources or hormones to eggs and embryos.
The
tendency for poorer embryo development in eggs of GBH-exposed parents
may be explained by GBH-related effects via either a paternal or
maternal route, or both. We did not appear to observe cumulative effects
of GBH exposure on embryo viability, as longer exposure (12 vs 4
months) did not lead to less viability. The eggs with no visible
development (to the naked eye) could have been completely infertile or
showing developmental arrest at an early stage. There are multiple
potential mechanisms underlying such effects: For example, early embryos
of fish showed developmental anomalies (disproportional head and body
size) and increased heart rate (medeka, 100–500 mg/L RoundUp31, neurotoxic effects zebrafish, up to 50 mg/L RoundUp32) and Xenopus showed craniofacial deformities12. Poultry embryos and mice oocytes expressed increased oxidative stress (500 mM pure glyphosate33) and lower hatchability (10 mg/kg egg RoundUp24)
in response to GBH exposure. Due to practical constraints we could only
analyse embryo development until day 3 after 4 months of parental
exposure while embryo day 10 was assessed after 12 months of parental
exposure. The different timing of sampling can influence the fraction of
embryos staged – after 10 days there are in general less viable embryos
in both treatments. We do not currently know at what stage during the
embryo development any potential negative effect of GBHs may occur. If
it occurs mainly very early in the development, before our 3-day
sampling point, then our two time-points should give comparable results.
However, if potential negative effects of GBHs on embryo development
mainly occurs after our 3-day sampling point, the 10-day sampling may
reflect more appropriate sampling point. In the latter case, our study
design cannot distinguish between short-term (4 months) and cumulative
(12 months) of exposure as the sampling stage is confounded with
sampling date. Due to rather limited sample sizes, the results need to
be interpreted with care.
We selected embryonic development as a
proxy of reproductive success because it is relevant for the poultry
industry and for assessing GBH effects on population growth in wild
species. Thus, our methodology could not distinguish between the
alternative (paternal versus maternal) underlying mechanisms could have
been completely infertile or show developmental arrest at an early
stage. We hypothesized that potential infertility may result from
GBH-related problems in semen quality or altered reproductive behavior
in males as suggested previously in other vertebrates2,34,35,36.
The fact that the measured egg quality parameters appeared not to be
affected by GBHs suggests that any negative effects of GBHs on female
folliculogenesis and ovary development, detected in previous studies37,38,39
are unlikely. Yet, a power analysis revealed that with the current
effect sizes we have sufficient sample size to detect differences (with
power 0.8) among the groups only for egg mass (estimated N = 94 per
group compared to our 142–155 per group). However, for egg components,
the required sample sizes (per group) were calculated as 32, 244, 75 and
58 for yolk, shell, T4 and T3, respectively, compared to our sample
size of 12 per group, suggesting limited power.
We showed a
tendency for GBH exposure to increase embryo brain lipid damage, while
other biomarkers of oxidative stress appeared not be influenced.
Potential effects on lipid damage could result from GBHs increasing
reactive oxygen species (ROS) production2.
Our results are in contrast to previous studies of poultry where
embryos experimentally exposed to GBHs have shown large and significant
teratogenic effects on early embryonic development, decreased
antioxidant enzymes activities (GP, SOD, and CAT) and increased damage
to lipids, liver tissue, and kidney tissue post-hatching23,24,
However, our study design was different from previous studies, and the
sample sizes in our study were relative small, so replication with
larger sample sizes is needed to confirm our results. A power analysis
revealed that with the current effect sizes, the sample sizes (per
group) needed to find a statistically significant effect would have been
280, 2058, 22825 for GST, GP and CAT respectively, while only 32 for
MDA, in contrast to our sample sizes of 16–19 per group. However, it
must be noted that the abovementioned experimental studies using in ovo injections, researchers applied larger GBH doses compared to those in our experiment12 ca 50 mg/kg, i.e. >50x our study24,
ca 10 mg/kg, >10x higher than residues in our study), which may
explain the different responses. The embryonic brain can be particularly
susceptible to ROS because the detoxification system via antioxidants
is underdeveloped and polyunsaturated fatty acids are abundant in brain
tissue. Indeed, the absence of an observed effect of GBHs on
antioxidants in our experiment may be due to the incapability of the
underdeveloped embryonic antioxidant system to respond to GBHs.
Oxidative damage to lipids may have serious consequences on brain
development32; it is also linked to aging and the onset of many diseases e.g.40 and GBHs have been shown to have neurotoxic effects on animals such as rodents3,41.
It remains to be studied whether the small changes in embryo lipid
damage can lead to measurable long-term effects in the offspring.
Conclusions
Parental
GBH exposure in a bird model appeared not to influence resource
allocation to eggs, and had only weak effects on embryo development and
physiology. However, to our knowledge, this is the first long-term study
testing parental effects of GBHs with birds, and also taking into
account the indirect effects via potential altered resource allocation.
We only measured a limited number of biomarkers, and thus more studies
are needed for characterizing GBH-associated changes in maternal
allocation and epigenetic programming. Moreover, indications of negative
effect in our study may not have been studied with sufficient
statistical power. In a natural ecosystem, parental and
transgenerational effects may lead to delayed and cascading impacts of
agrochemicals; this may potentially explain why some non-target animal
populations recover slowly after being exposed to environmental
contamination. Thus, recurrent changes in wild populations or in
production animals often remain unexplained and may be rarely linked to
GBH exposure.
Material and methods
We
performed an experiment in which a parental generation of Japanese
quails were fed with either GBH-contaminated food (N = 13 breeding
pairs) or control food (N = 13 breeding pairs) from the age of 10 days
to 12 months, and eggs and embryos from these pairs were collected.
Details of the experimental design and parental exposures are described
in42.
The
GBH-exposed parents were fed organic food (Organic food for laying
poultry, “Luonnon Punaheltta” Danish Agro, Denmark) with added
commercial GBH (RoundUp Flex 480 g/l glyphosate, present as 588 g/l
[43.8% w.w] of potassium salt of glyphosate, with surfactants
alkylpolyglycoside (5% of weight) and nitrotryl (1% of weight)
(AXGD42311 5/7/2017, Monsanto, 2002). The control parents were fed the
same organic food in which water was added without GBH. A GBH product
was selected over pure glyphosate to mimic the exposures in natural
environments including exposure to adjuvants, as adjuvants may increase
the toxicity of glyphosate2,43.
However, with this experimental design we could not distinguish the
potential effects of adjuvants themselves, or whether they altered the
effects of the active ingredient, glyphosate. The concentration of
glyphosate in the GBH food was aimed at ca 200 mg/kg food, which
corresponds to a dose of 12–20 mg glyphosate/kg body mass/day in
full-grown Japanese quails. Eason and Swanlon44
estimated that up to 350 mg/kg glyphosate could end up in grains when
GBHs are spread on the fields before harvesting. However, the based on
actual measurements, European Food Safety Authority (EFSA)45
estimated for poultry a maximum of 33.4 mg/kg glyphosate in feed (dry
matter), corresponding to maximum intake of 2.28 mg/kg body mass daily.
EFSA further reports a NOAEL (No Adverse Effects Level) of 100 mg/kg
body mass/day for poultry45;
therefore, our experiment tests a rather moderate concentration well
below this threshold, yet above the estimated maximum residue by EFSA.
Furthermore, a dose of 347 mg/kg did not negatively influence adult body
mass in Japanese quails in a short-term experiment44. According to the manufacturer, acute toxicity (LC50) (via food) of RoundUp Flex is >4640 mg/kg food for mallards (Anas platyrhynchos) and bobwhite quail (Colinus virginianus).
GBH
food was prepared every week to avoid potential changes in
concentration caused by degradation. Diluted RoundUp Flex was mixed with
the organic food in a cement mill (Euro-Mix 125, Lescha, Germany). The
food was air-dried and further crushed with a food crusher (Model ETM,
Vercella Giuseppe, Italy) to a grain size suitable for the birds
considering their age. The control food was prepared using a similar
method, but only water was added to the food and a separate cement mill
was used (ABM P135 L, Lescha, Germany). After crushing, the dry food was
stored in closed containers at 20 °C in dry conditions. Separate
equipment for food preparation and storage were used for GBH and control
food to avoid contamination.
To verify the treatment levels in
the parental generation, glyphosate concentration was measured in 6
batches of food and residue levels were measured in excreta (feces and
urine combined) samples after 12 months of exposure. The average
glyphosate concentration of 6 batches of food was 164 mg/kg
(S.E. ± 55 mg/kg). The average glyphosate concentration in 3 pools of
excreta samples (urine and fecal matter combined) was 199 mg/kg
(S.E. ± 10.5 mg/kg). The control feed and control pools of excreta were
free of glyphosate residues (<0.01 mg/kg).
Egg mass
Parental
generation was reared in same-sex groups for the first 12 weeks and
thereafter in randomly allocated female-male pairs of the same
treatment. Eggs were collected for measurements of egg mass when the
birds were 4 and 12 months old. Eggs from each cage were collected eggs
daily (quails generally lay one egg per day), marked individually, and
weighed. A total of 221 and 96 eggs were collected at 4 and 12 months,
respectively.
Egg quality: Yolk and shell mass and thyroid hormones
Additional
24 unincubated eggs (N = 12 per group) were collected at 4 moths of
exposure for egg component analyses. Eggs were thawed and the yolk and
shell were separated and weighed (accuracy 1 mg). T3 and T4 were
measured from yolk following previously published methods46 and were expressed as pg/mg yolk.
Egg glyphosate residue analysis
When
the birds were 10 months old, eggs from each cage were collected daily
for 1 week, marked individually, and frozen at -20 °C for glyphosate
residue analysis. Prior to analysis, randomly selected 5 eggs
(originating from 5 different females) from both the GBH and control
treatments were thawed and the shells carefully removed. To avoid
contamination, all eggs were processed in a lab that was never in
contact with glyphosate, using clean materials (gloves, petri dishes,
tubes) for each egg. When removing content from the eggshell, the egg
content was never in touch with the outer egg shell. The contents of 5
eggs from the control treatment were then pooled for glyphosate residue
analysis. Pooling was done to reduce the costs of glyphosate analyses.
The contents of 5 eggs from the GBH treatment were individually analysed
for glyphosate residues.
Development and tissue sampling
Embryo
development was assessed after 4 and 12 months of parental exposure to
GBHs. At 4 months, 108 GBH and 112 control eggs (see ‘egg mass’) were
artificially incubated for 3 days at 36.8 °C and 55% humidity (Rcom Maru
Max, Standard CT-190, Autoelex CO. LTD, South-Korea). Eggs were
thereafter chilled and assessed for the presence of a normally developed
embryo (coded 1) or no embryo/a very small embryo (coded 0) by naked
eye. Note that by naked eye, one cannot distinguish between the
unfertilized eggs and an embryo that died very early - yet the key idea
was to study whether eggs developed to normal 3d-embryos or not to
assess the effects of GBHs on development and reproduction.
After
parental exposure for 12 months, 44 GBH and 52 control eggs were
collected fresh and incubated for 10 days (i.e. 55% of the normal
embryonic developmental period, 17 to 18 days) to assess general
development (again, coded as 1 for normal development and 0 for no
embryo/a very small embryo). The whole brain tissue of the embryo was
dissected, snap frozen in liquid nitrogen and later stored at −80 °C for
oxidative biomarker analysis.
The experiments were conducted
under licenses from the Animal Experiment Board of the Administrative
Agency of South Finland (ESAVI/7225/04.10.07/2017). All experiments were
performed in accordance with relevant guidelines and regulations (Act
on the Protection of Animals Used for Scientific or Educational
Purposes, 497/2013).
Brain mass and oxidative status biomarkers
We
aimed to analyze 2 randomly selected embryo samples per breeding pair
(N = 13 pairs/treatment). However, as not all females were producing
eggs, or did not produce eggs with (viable) embryos, the final sample
size was 19 control embryos (from 10 females) and 16 GBH embryos (from
10 females). Brain homogenates were used to measure oxidative status
biomarkers, antioxidant enzymes glutathione-S-transferase (GST),
glutathione peroxidases (GPx), catalase (CAT), and oxidative damage to
lipids (malonaldehyde, MDA as a proxy, using TBARS assay). Whole brains
were weighed (~0.1 mg) and homogenized (TissueLyser, Qiagen, Austin,
USA) with 200–400 µl KF buffer (0.1 M K2HPO4 + 0.15 M
KCl, pH 7.4). All biomarkers were measured in triplicate (intra-assay
coefficient of variability [CV] < 15% in all cases) using an EnVision
microplate reader (PerkinElmer, Finland) and calibrated to the protein
concentration in the sample following47.
The GPx-assay (Sigma CGP1) was adjusted from a cuvette to a 384-well
plate. GPx was measured following kit instructions but instead of
t-Bu-OOH, we used 2 mM H2O2, which is a substrate for GPx and CAT. To block CAT, 1 mM NaN3 was added and the pH was adjusted to 7.0 with the HCl in the buffer provided with the kit48,49.
GST-assay (Sigma CS0410) was likewise adjusted from a 96- to a 384-well
plate using our own reagents: Dulbecco’s Phosphate Buffered
Saline–buffer (DPBS), 200 mM GSH (Sigma G4251), and 100 mM
1-Chloro-2,4-dinitrobenzene (CDNB) (Sigma C6396) in ethanol, see details
in50.
The CAT-assay (Sigma CAT100) was adjusted from a cuvette to a 96-well
plate. We used a 0.3 mg/ml sample dilution, see details in48,51. The lipid peroxidation was analyzed using a 384-plate modification of a TBARS-assay following52.
Statistical analysis
Egg
mass was analyzed using linear mixed models (LMMs) with treatment (GBH
or control), exposure duration (4 or 12 months) and their interaction as
predictors, female mass as a covariate, and breeding pair ID as a
random effect to control for non-independence of eggs from the same
pair.
\,{\rm{Period}}+{\rm{Female}}\,{\rm{mass}}\,({\rm{covariate}})+{\rm{Pair}}\,{\rm{ID}}\,({\rm{random}})$$
(1)
Differences between the GBH and control
groups in yolk and eggshell mass and egg thyroid hormone levels were
analyzed with two-sample t-tests. The likelihood of embryo development
was analyzed using generalized linear mixed models (binomial
distribution, logit link):
\,{\rm{Period}}+{\rm{Female}}\,{\rm{mass}}\,({\rm{covariate}})+{\rm{Pair}}\,{\rm{ID}}\,({\rm{random}})$$
(2)
Embryo brain mass, GST, GP, CAT, and MDA were analyzed using LMMs as following:
(3)
The Kenward-Rogers method was used to
estimate the degrees of freedom. Residuals of the models were visually
inspected to confirm normality and heteroscedasticity. All statistical
analyses were conducted with SAS Enterprise Guide 7.1. All data are
available as Supplementary Data Files (1–3).
Data availability
References
- 1.
Benbrook, C. M.Trends in glyphosate herbicide use in the United States and globally. Environmental Sciences Europe 28 (2016).
- 2.
Gill, J. P. K., Sethi, N., Mohan, A., Datta, S. & Girdhar, M. Glyphosate toxicity for animals. Environmental Chemistry Letters 16, 401–426 (2018).
- 3.
Szekacs, A. & Darvas, B. Re-registration Challenges of Glyphosate in the European Union. Frontiers in Environmental Science 6, 35 (2018).
- 4.
Van Bruggen, A. H. C. et al. Environmental and health effects of the herbicide glyphosate. Science of the Total Environment 616, 255–268 (2018).
- 5.
Bai,
S. H. & Ogbourne, S. M. Glyphosate: environmental contamination,
toxicity and potential risks to human health via food contamination. Environmental Science and Pollution Research 23, 18988–19001 (2016). - 6.
Helander, M., Saloniemi, I. & Saikkonen, K. Glyphosate in northern ecosystems. Trends in Plant Science 17, 569–574 (2012).
- 7.
Bohn,
T. & Millstone, E. The Introduction of Thousands of Tonnes of
Glyphosate in the food Chain-An Evaluation of Glyphosate Tolerant
Soybeans. Foods 8, 14 (2019). - 8.
Saghir,
S. A., Khan, S. A. & McCoy, A. T. Ontogeny of mammalian
metabolizing enzymes in humans and animals used in toxicological
studies. Critical Reviews in Toxicology 42, 323–357 (2012). - 9.
Schweizer,
M., Brilisauer, K., Triebskorn, R., Forchhammer, K. & Kohler, H. R.
How glyphosate and its associated acidity affect early development in
zebrafish (Danio rerio). Peerj 7, 25 (2019). - 10.
Webster,
T. M. U., Laing, L. V., Florance, H. & Santos, E. M. Effects of
Glyphosate and its Formulation, RoundUp, on Reproduction in Zebrafish
(Danio rerio). Environmental Science & Technology 48, 1271–1279 (2014). - 11.
Babalola,
O. O., Truter, J. C. & van Wyk, J. H. Mortality, teratogenicity and
growth inhibition of three glyphosate formulations using Frog Embryo
Teratogenesis Assay-Xenopus. Journal of Applied Toxicology 39, 1257–1266 (2019). - 12.
Paganelli,
A., Gnazzo, V., Acosta, H., Lopez, S. L. & Carrasco, A. E.
Glyphosate-Based Herbicides Produce Teratogenic Effects on Vertebrates
by Impairing Retinoic Acid Signaling. Chemical Research in Toxicology 23, 1586–1595 (2010). - 13.
Dallegrave, E. et al. The teratogenic potential of the herbicide glyphosate-RoundUp (R) in Wistar rats. Toxicology Letters 142, 45–52 (2003).
- 14.
Ren, X. et al. Effects of glyphosate on the ovarian function of pregnant mice, the secretion of hormones and the sex ratio of their fetuses. Environmental Pollution 243, 833–841 (2018).
- 15.
Dallegrave, E. et al. Pre- and postnatal toxicity of the commercial glyphosate formulation in Wistar rats. Archives of Toxicology 81, 665–673 (2007).
- 16.
Marshall, D. J. & Uller, T. When is a maternal effect adaptive? Oikos 116, 1957–1963 (2007).
- 17.
Mesnage,
R., Defarge, N., de Vendomois, J. S. & Seralini, G. E. Potential
toxic effects of glyphosate and its commercial formulations below
regulatory limits. Food and Chemical Toxicology 84, 133–153 (2015). - 18.
Kubsad, D. et al.
Assessment of Glyphosate Induced Epigenetic Transgenerational
Inheritance of Pathologies and Sperm Epimutations: Generational
Toxicology. Scientific Reports 9, 17 (2019). - 19.
Ruuskanen, S. Hormonally-mediated maternal effects in birds: Lessons from the flycatcher model system. General and Comparative Endocrinology 224, 283–293 (2015).
- 20.
Ruuskanen,
S. & Hsu, B. Y. Maternal Thyroid Hormones: An Unexplored Mechanism
Underlying Maternal Effects in an Ecological Framework. Physiological and Biochemical Zoology 91, 904–916 (2018). - 21.
Moore, M. P., Whiteman, H. H. & Martin, R. A. A mother’s legacy: the strength of maternal effects in animal populations. Ecology Letters 22, 1620–1628 (2019).
- 22.
Kissane, Z. & Shephard, J. M. The rise of glyphosate and new opportunities for biosentinel early-warning studies. Conservation Biology 31, 1293–1300 (2017).
- 23.
Fathi, M. A. et al.
Effect of in ovo glyphosate injection on embryonic development, serum
biochemistry, antioxidant status and histopathological changes in newly
hatched chicks. Journal of Animal Physiology and Animal Nutrition, 9 (2019). - 24.
Fathi, M. A. et al.
Effect of in ovo glyphosate injection on embryonic development, serum
biochemistry, antioxidant status and histopathological changes in newly
hatched chicks. Journal of Animal Physiology and Animal Nutrition 103, 1776–1784 (2019). - 25.
Halliwell, B. & Gutteridge, J. M. C. Free Radicals in Biology and Medicine. (Oxford University Press, New York, 2015).
- 26.
Ruuskanen,
S., Darras, V. M., Visser, M. E. & Groothuis, T. G. G. Effects of
experimentally manipulated yolk thyroid hormone levels on offspring
development in a wild bird species. Hormones and Behavior 81, 38–44 (2016). - 27.
Darras,
V. M., Van Herck, S. L. J., Geysens, S. & Reyns, G. E. Involvement
of thyroid hormones in chicken embryonic brain development. General and Comparative Endocrinology 163, 58–62 (2009). - 28.
de Souza, J. S. et al.
Perinatal exposure to glyphosate-based herbicide alters the
thyrotrophic axis and causes thyroid hormone homeostasis imbalance in
male rats. Toxicology 377, 25–37 (2017). - 29.
Ruuskanen, S. et al.
Female Preference and Adverse Developmental Effects of Glyphosate-Based
Herbicides on Ecologically Relevant Traits in Japanese Quails. Environmental Science & Technology 54, 1128–1135 (2020). - 30.
FAO, “Pesticide residues in food,” Report
of the Joint Meeting of the FAO Panel of Experts on Pesticide Residues
in Food and the Environment and the WHO Core Assessment Group on
Pesticide Residues Geneva, Switzerland, 20–29 September 2005 (2005). - 31.
Yusof,
S., Ismail, A. & Alias, M. S. Effect of glyphosate-based herbicide
on early life stages of Java medaka (Oryzias javanicus): A potential
tropical test fish. Marine Pollution Bulletin 85, 494–498 (2014). - 32.
Roy, N. M., Carneiro, B. & Ochs, J. Glyphosate induces neurotoxicity in zebrafish. Environmental Toxicology and Pharmacology 42, 45–54 (2016).
- 33.
Zhang, J. W., Xu, D. Q. & Feng, X. Z. The toxic effects and possible mechanisms of glyphosate on mouse oocytes. Chemosphere 237, 10 (2019).
- 34.
Romano, M. A. et al. Glyphosate impairs male offspring reproductive development by disrupting gonadotropin expression. Archives of Toxicology 86, 663–673 (2012).
- 35.
Cai, W. Y. et al. Effects of glyphosate exposure on sperm concentration in rodents: A systematic review and meta-analysis. Environmental Toxicology and Pharmacology 55, 148–155 (2017).
- 36.
Johansson, H. K. L. et al. Exposure to a glyphosate-based herbicide formulation, but not glyphosate alone, has only minor effects on adult rat testis. Reproductive Toxicology 82, 25–31 (2018).
- 37.
Hamdaoui, L. et al. Subchronic exposure to kalach 360 SL-induced endocrine disruption and ovary damage in female rats. Archives of Physiology and Biochemistry 124, 27–34 (2018).
- 38.
Alarcon, R. et al.
Neonatal exposure to a glyphosate-based herbicide alters the
histofunctional differentiation of the ovaries and uterus in lambs. Molecular and Cellular Endocrinology 482, 45–56 (2019). - 39.
Schimpf,
M. G., Milesi, M. M., Ingaramo, P. I., Luque, E. H. & Varayoud, J.
Neonatal exposure to a glyphosate based herbicide alters the development
of the rat uterus. Toxicology 376, 2–14 (2017). - 40.
Simonian, N. A. & Coyle, J. T. Oxidative stress in neurodegenerative diseases. Annual Review of Pharmacology and Toxicology 36, 83–106 (1996).
- 41.
Bali,
Y. A., Ba-Mhamed, S. & Bennis, M. Behavioral and
Immunohistochemical Study of the Effects of Subchronic and Chronic
Exposure to Glyphosate in Mice. Frontiers in Behavioral Neuroscience 11, 13 (2017). - 42.
Ruuskanen, S et al.
Female preference and adverse developmental effects of glyphosate based
herbicide on ecologically relevant traits in Japanese quails. Environmental Science and Technology in press (2020). - 43.
Mesnage, R. & Antoniou, M. N. Ignoring Adjuvant Toxicity Falsifies the Safety Profile of Commercial Pesticides. Frontiers in Public Health 5, 8 (2018).
- 44.
Eason,
T. H. & Scanlon, P. F. Effects of Atrazine and Glyphosate ingestion
on body weight and nutritional well-being of Coturnix quail. Zeitschrift Fur Jagdwissenschaft 48, 281–285 (2002). - 45.
Efsa, Evaluation of the impact of glyphosate and its residues in feed on animal health. Efsa Journal 16 (2018).
- 46.
Ruuskanen, S. et al. A new method for measuring thyroid hormones using nano-LC-MS/MS. Journal of Chromatography B-Analytical Technologies in the Biomedical and Life Sciences 1093, 24–30 (2018).
- 47.
Smith, P. K. et al. Measurement of protein using bicinchoninic acid. Analytical Biochemistry 150, 76–85 (1985).
- 48.
Deisseroth, A. & Dounce, A. L. Catalase: physical and chemical properties, mechanism of catalysis, and physiological role. Physiological Reviews 50, 319–375 (1970).
- 49.
Deissero, A. & Dounce, A. L. Catalase - Physical and Chemical Properties, Mechanism of Catalysis, and Physiological Role. Physiological Reviews 50, 319-& (1970).
- 50.
Habig, W. H., Pabst, M. J. & Jakoby, W. B. Glutathione-s-transferases - first enzymatic step in mercapturic acid formation. Journal of Biological Chemistry 249, 7130–7139 (1974).
- 51.
Fossati,
P., Prencipe, L. & Berti, G. Use of
3,5-dichloro-2-hydroxybenzenesulfonic acid/4-aminophenazone chromogenic
system in direct enzymic assay of uric-acid in serum and urine. Clinical Chemistry 26, 227–231 (1980). - 52.
Espin,
S., Sanchez-Virosta, P., García-Fernandez, A. J., E. T, A microplate
adaptation of the thiobarbituric acid reactive substances assay to
determine lipid peroxidation fluorometrically in small sample volumes. Revista de Toxicologia 34 (2018).
Acknowledgements
We
thank Ida Palmroos, Lyydia Leino, Nicolaus Steinmetz, and Lauri
Heikkonen for their help during the data collection. The study was
funded by the Academy of Finland (grant no. 311077 to MH).
Author information
Affiliations
- Department of Biology, University of Turku, Vesilinnantie 5, 20500, Turku, Finland
- Suvi Ruuskanen
- , Miia J. Rainio
- , Maiju Uusitalo
- & Marjo Helander
- Biodiversity Unit, University of Turku, Vesilinnantie 5, 20500, Turku, Finland
- Kari Saikkonen
Contributions
S.R.,
M.J.R., M.U. and M.H. designed the study. S.R., M.U. and M.J.R.
conducted the data collection. S.R. conducted the analyses and drafted
the first version. S.R., M.J.R., M.H. and K.S. prepared the manuscript.
Corresponding author
Correspondence to
Suvi Ruuskanen.
Ethics declarations
Competing interests
The authors declare no competing interests.
Additional information
Publisher’s note Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.
Supplementary information
Rights and permissions
Open Access This article is licensed under a
Creative Commons Attribution 4.0 International License, which permits
use, sharing, adaptation, distribution and reproduction in any medium or
format, as long as you give appropriate credit to the original
author(s) and the source, provide a link to the Creative Commons
license, and indicate if changes were made. The images or other third
party material in this article are included in the article’s Creative
Commons license, unless indicated otherwise in a credit line to the
material. If material is not included in the article’s Creative Commons
license and your intended use is not permitted by statutory regulation
or exceeds the permitted use, you will need to obtain permission
directly from the copyright holder. To view a copy of this license,
visit http://creativecommons.org/licenses/by/4.0/.
About this article
Cite this article
Ruuskanen, S., Rainio, M.J., Uusitalo, M. et al.
Effects of parental exposure to glyphosate-based herbicides on
embryonic development and oxidative status: a long-term experiment in a
bird model.
Sci Rep 10, 6349 (2020). https://doi.org/10.1038/s41598-020-63365-1
Received16 January 2020
Accepted30 March 2020
Published14 April 2020
Share this article
Anyone you share the following link with will be able to read this content:
Provided by the Springer Nature SharedIt content-sharing initiative
Comments
By submitting a comment you agree to abide by our Terms and Community Guidelines. If you find something abusive or that does not comply with our terms or guidelines please flag it as inappropriate.
Kokoelmat
- Rinnakkaistallenteet [19207]
